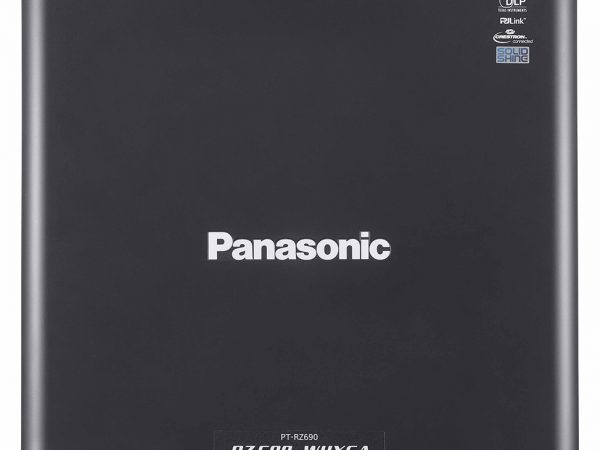

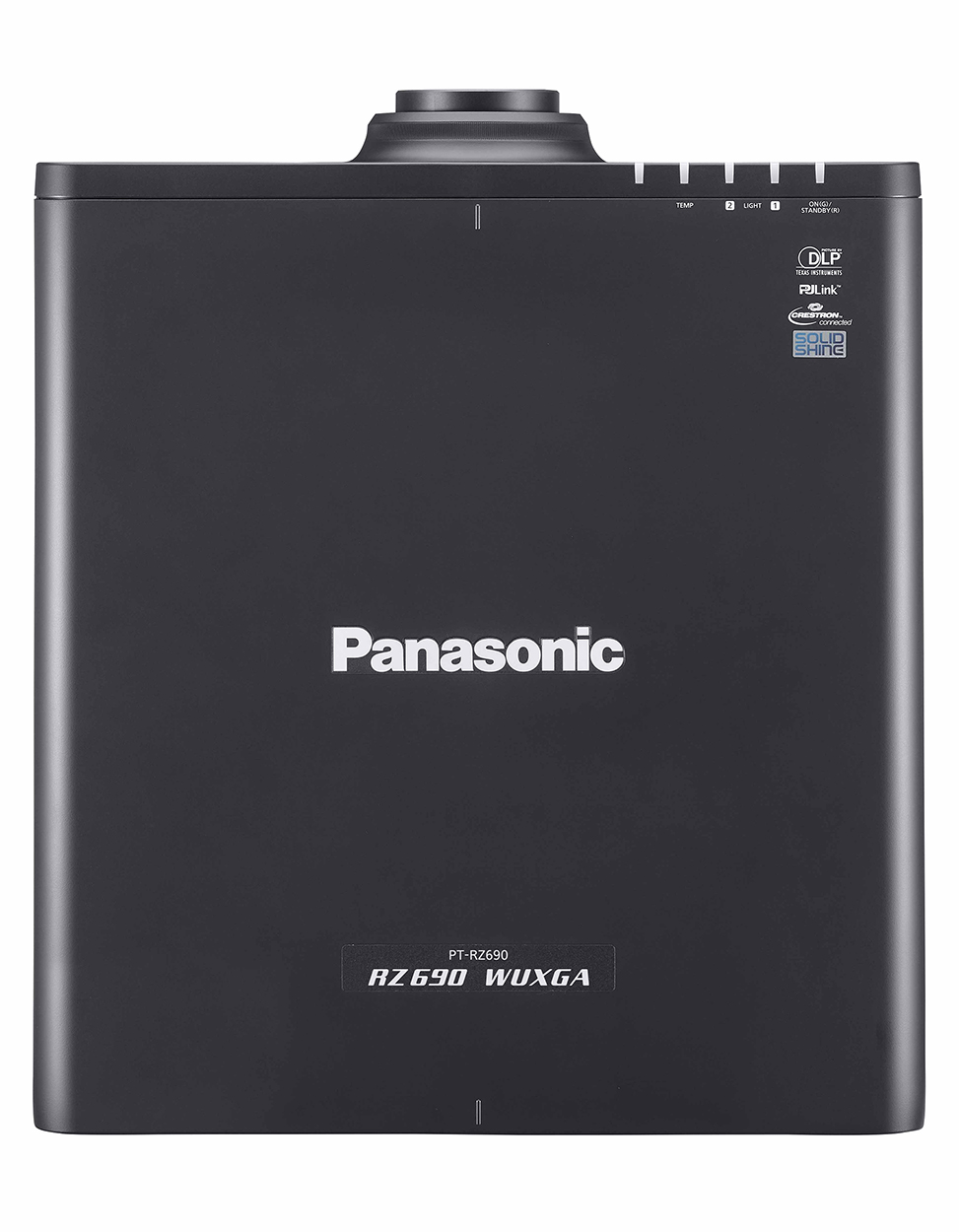

PANASONIC PT-RZ690BA ( 1Chip DLP / 6,000 lm / WUXGA) All LASER

560,000.00 ฿ 460,000.00 ฿

PANASONIC PT-RZ690BA ( 1Chip DLP / 6,000 lm / WUXGA) All LASER

  • ความสว่าง : 6,000 ANSI Lumens
  • ความละเอียด : 1920×1200(WUXGA)
  • ค่า Contrast : 10,000:1
  • ขนาดภาพ: 50 – 600 นิ้ว
  • การรับประกันตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1,000 ชม.
Download Brochure
หมวดหมู่: , ป้ายกำกับ: , ,

PANASONIC PT-RZ690BA ( 1Chip DLP / 6,000 lm / WUXGA) All LASER


PT-RZ790/RZ790L
PT-RZ690/RZ690L
Projector type 1-Chip DLP™ projector
DLP™ chip
Panel size 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Number of pixels 2,304,000 (1920 x 1200 pixels)
Light source Laser diodes
Light output 7,000 lm (Normal)*1/7,200 lm (Center)*2/5,600 lm (Eco)*1
2,800 lm (Long Life 1)*1/2,300 lm (Long Life 2)*1/1,900 lm (Long Life 3)*1		 6,000 lm (Normal)*1/6,200 lm (Center)*2/4,800 lm (Eco)*1
2,400 lm (Long Life 1)*1/2,000 lm (Long Life 2)*1/1,600 lm (Long Life 3)*1
Time until light output declines to 50 %*3 20,000 hours (Normal)/24,000 hours (Eco)
Resolution 1920 x 1200 pixels
Contrast ratio*1 10,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal) 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055,
2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio
Center-to-corner zone ratio*1 90 %
Lens PT-RZ790/RZ690: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm
PT-RZ790L/RZ690L: Optional powered zoom/focus lenses
Lens shift*4 (From the origin point of the lens mounter)
Vertical +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
Horizontal +30 %, -10 %
(+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
Keystone correction range Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035),
Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
Keystone correction range with optional ET-UK20 Upgrade Kit Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055),
Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055)
When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals
SDI IN BNC x 1: 3G/HD/SD-SDI input
HDMI IN HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5)
DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
RGB 2 IN D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
SERIAL/MULTI PROJECTOR SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL/MULTI PROJECTOR SYNC OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5
LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Power supply AC 100–240 V, 50/60 Hz
Power consumption 545 W (Normal)/435 W (Eco)
215 W (Long Life 1)/195 W (Long Life 2)/170 W (Long Life 3)		 490 W (Normal)/395 W (Eco)
200 W (Long Life 1)/180 W (Long Life 2)/160 W (Long Life 3)
Cabinet materials Molded plastic
Operation noise*1 36 dB (Normal) 35 dB (Normal)
Dimensions (W x H x D) PT-RZ790/RZ690: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) (with supplied lens)
PT-RZ790L/RZ690L: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝) (without lens)
Weight*7 PT-RZ790/RZ690: Approx. 22.1 kg (48.7 lbs) (with supplied lens)
PT-RZ790L/RZ690L: Approx. 21.3 kg (47.0 lbs) (without lens)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
TerminalsPT-RZ990/RZ990L
PT-RZ890/RZ890L
PT-RZ790/RZ790L
PT-RZ690/RZ690L		 Terminals
