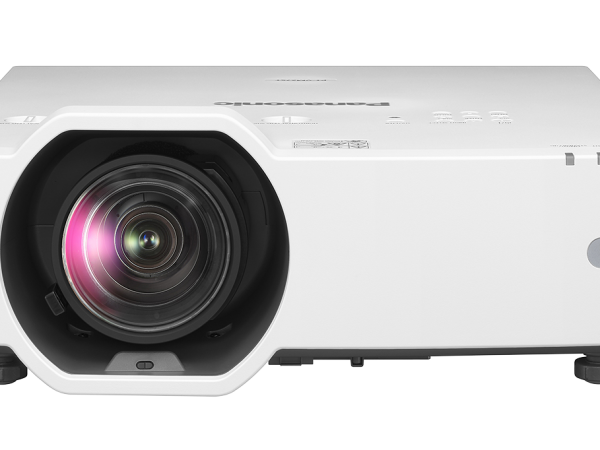

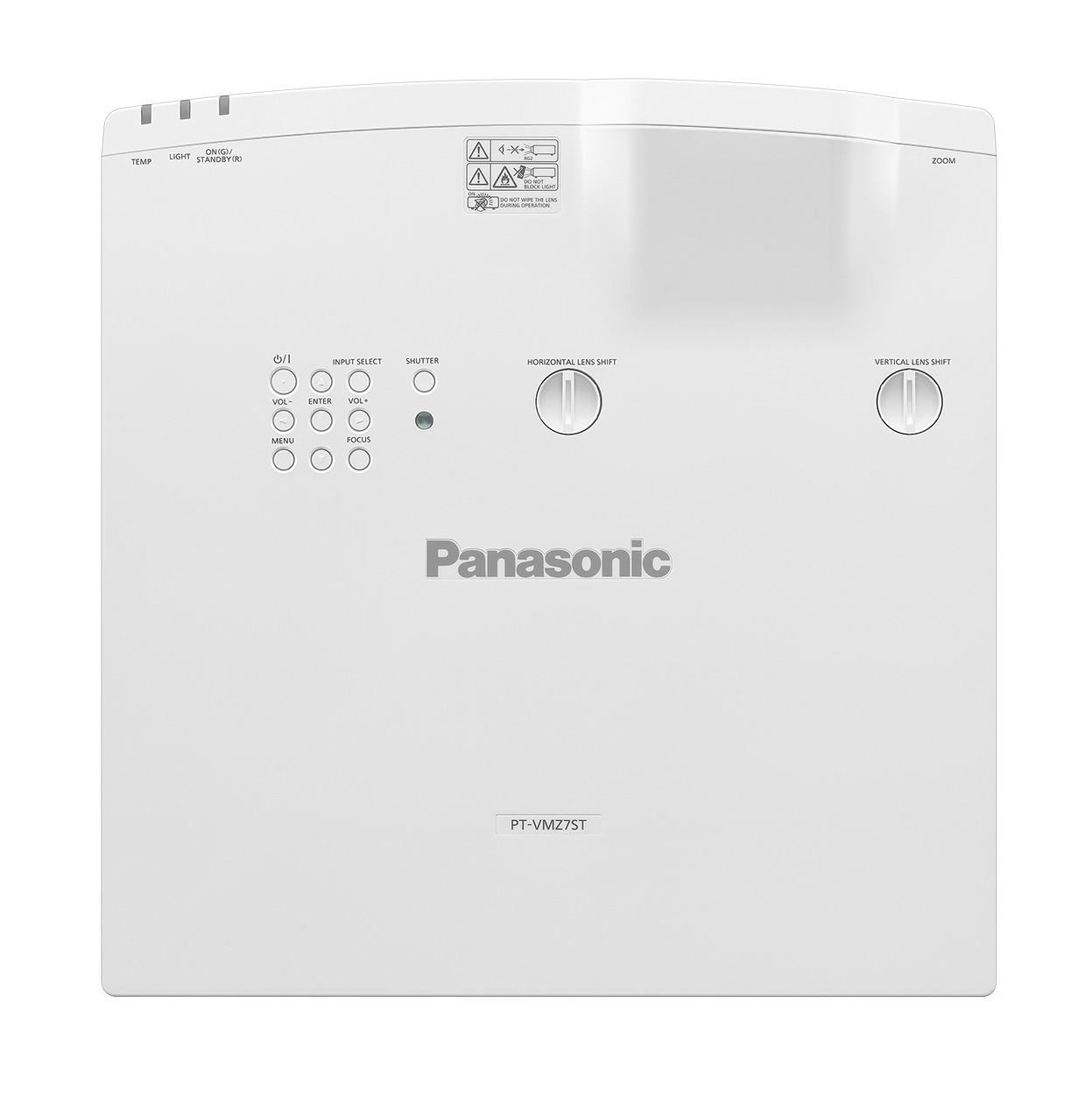

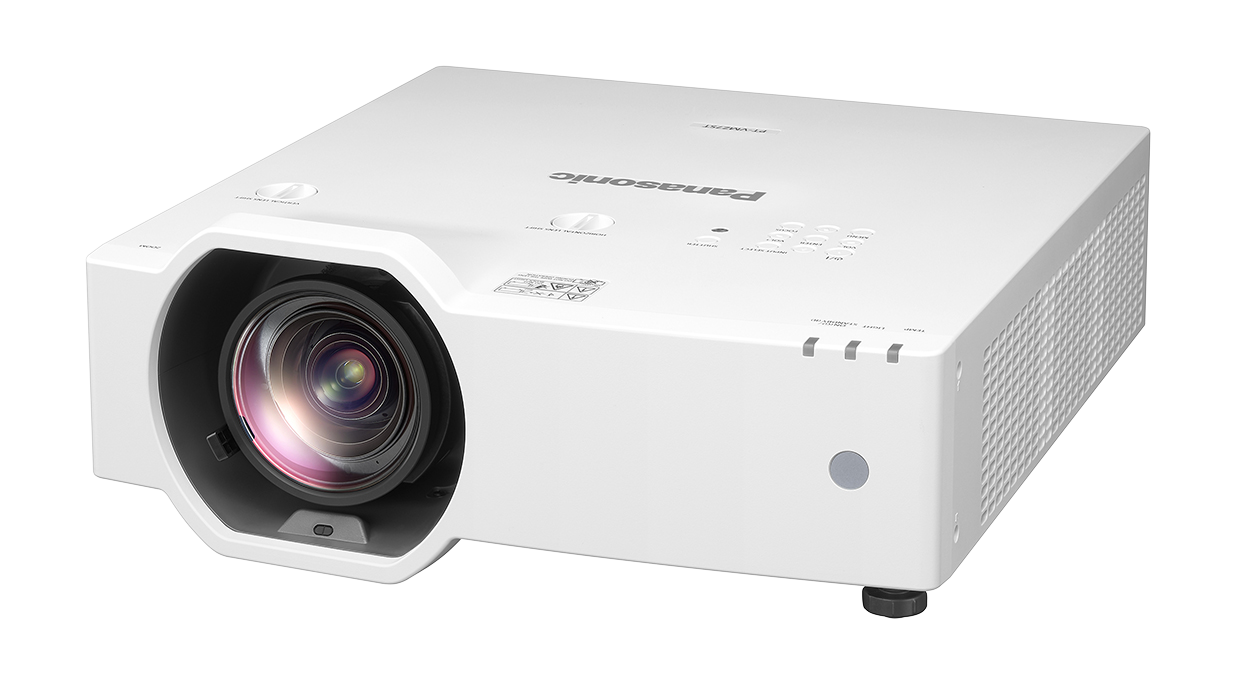

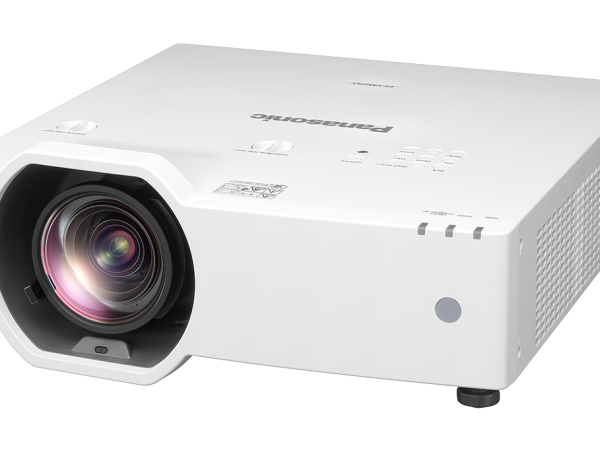

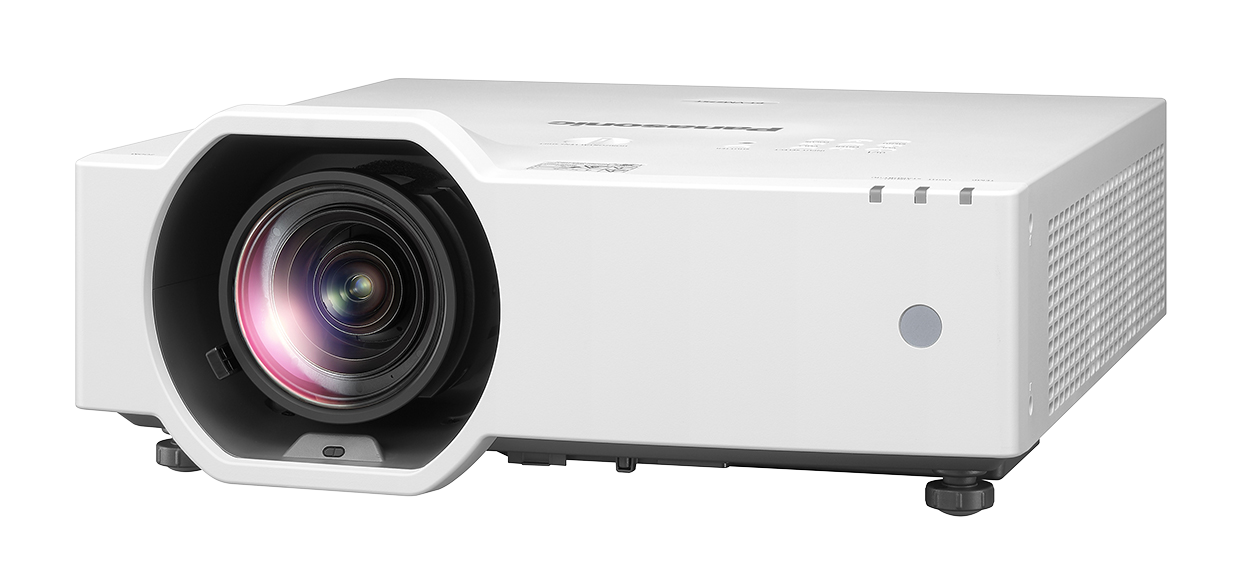

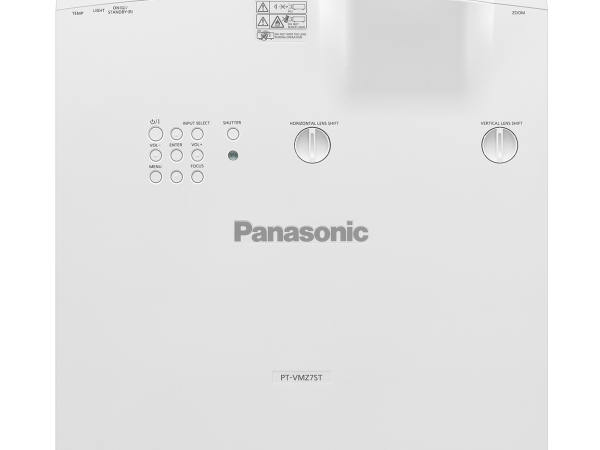

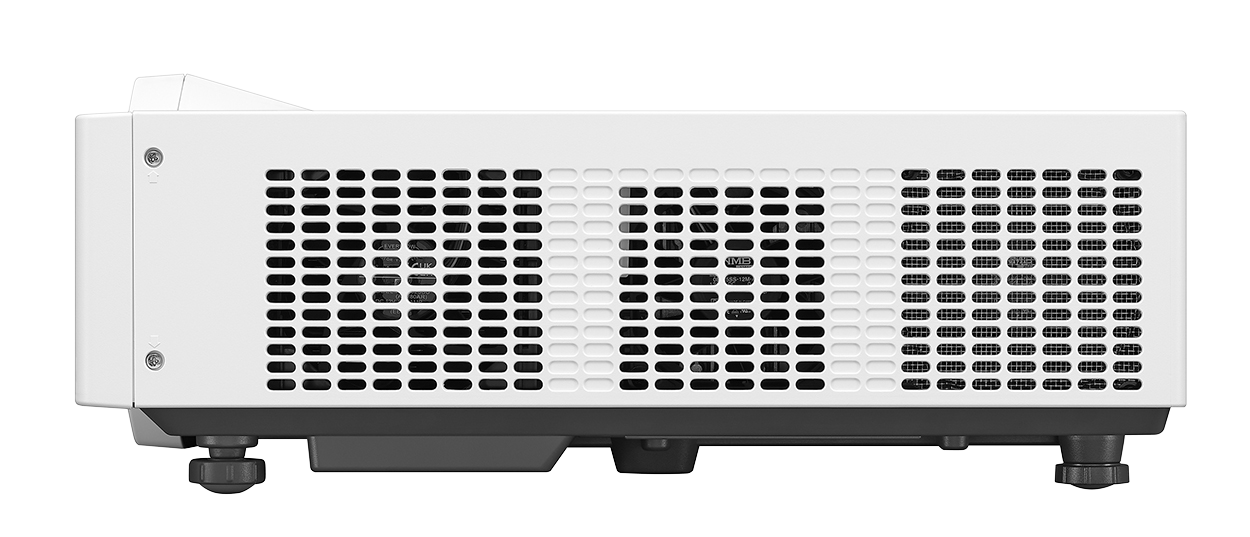

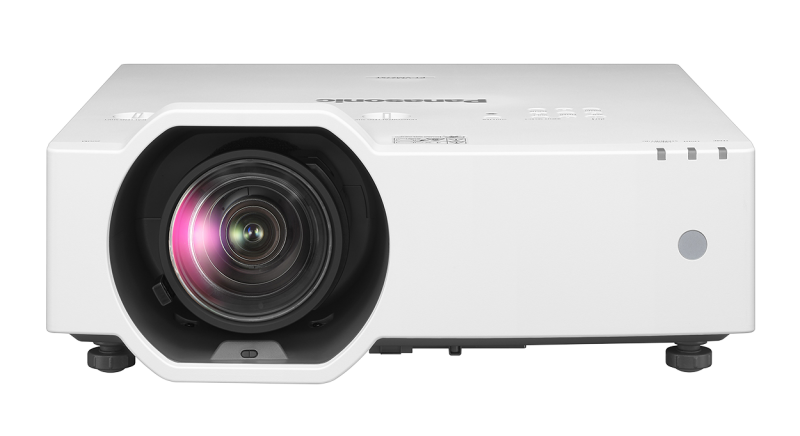

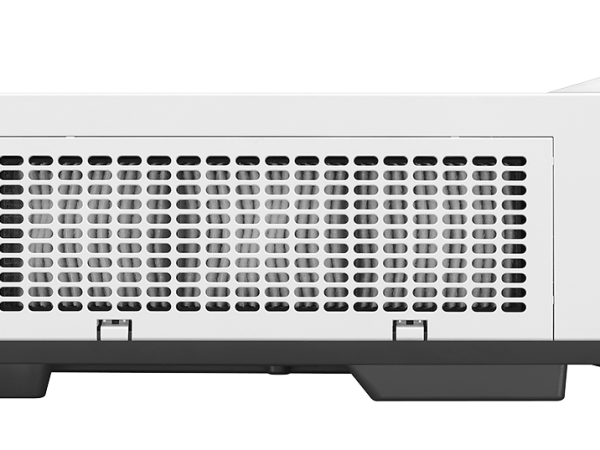

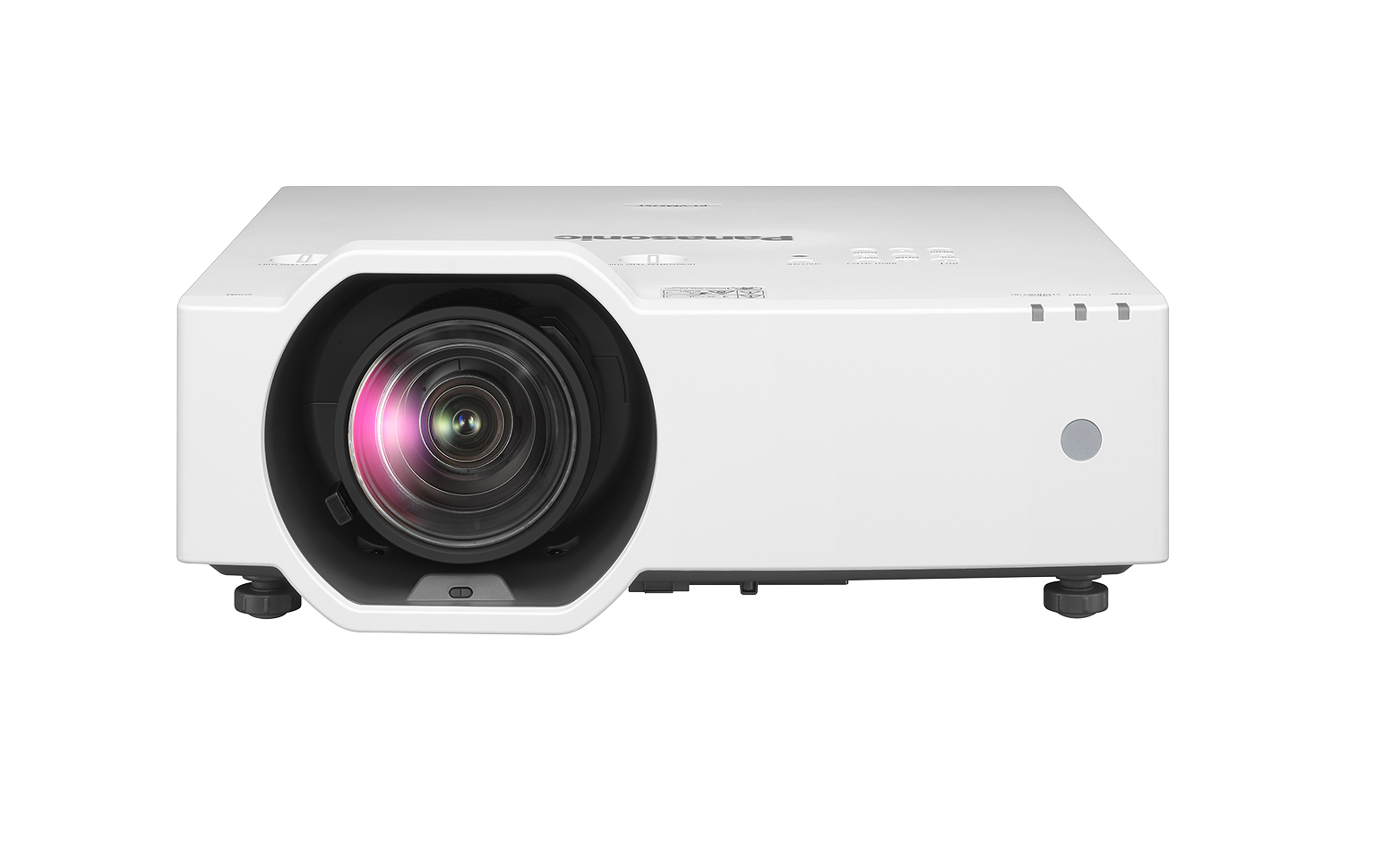

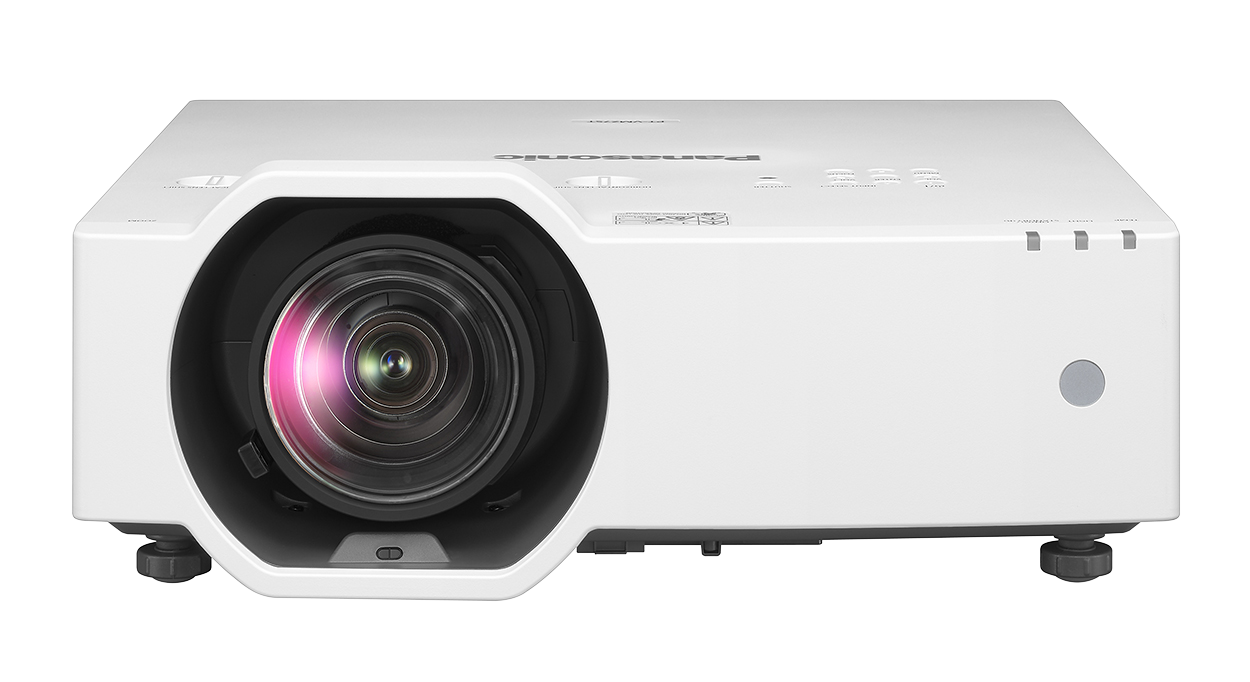

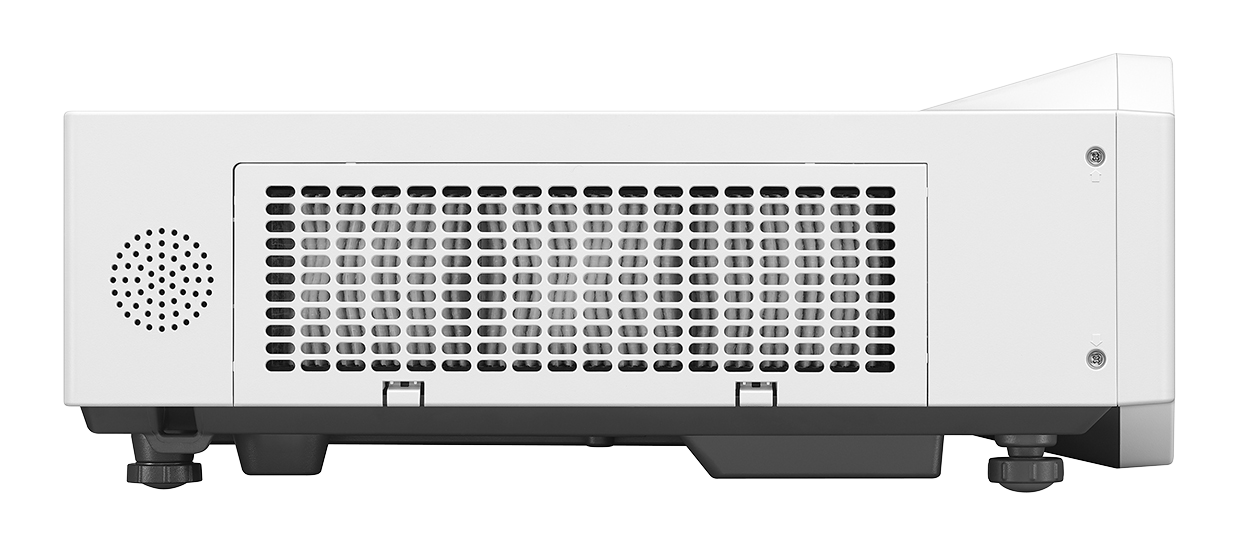

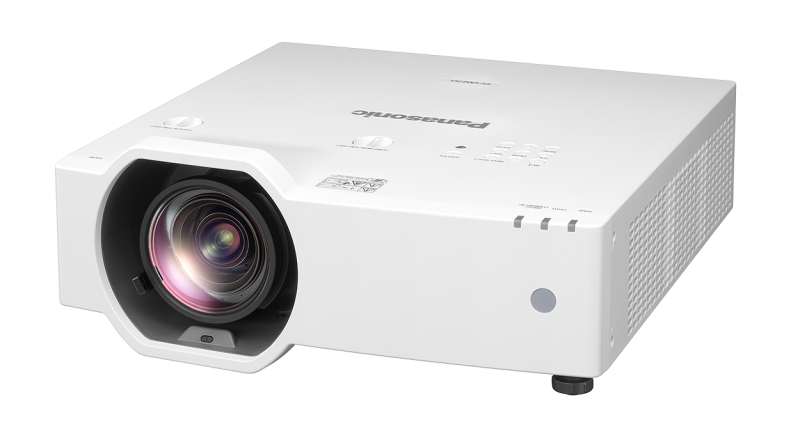

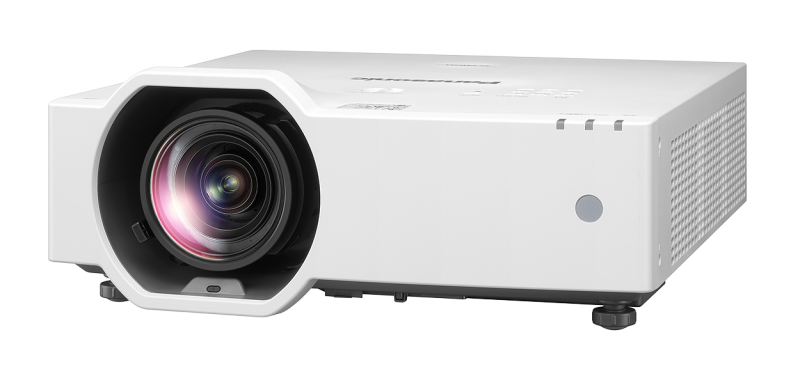

Panasonic PT-VMZ7ST WUXGA Short-Throw Laser Projector (7,000 lumens)

Unlock stunning visuals in compact spaces. The VMZ7ST Series’ 0.797–1.01:1 throw ratio projects large images up to 300 inches (16:10) while minimizing shadows from presenters or guests. Powered focus offers swift adjustment via remote control without the hassle of manual adjustment in hard-to-reach locations.

Enjoy greater installation flexibility with the built-in 1.2x optical zoom, which makes it easier to avoid ceiling obstructions. The projector offers +50% vertical and ±20% horizontal lens shift, accommodating off-axis or high mounting positions while maintaining image geometry. This adaptability is ideal for challenging layouts where the optimal projector position isn’t available.

Digital Zoom Extender increases the projector’s throw distance beyond its optical zoom range, making it possible to reuse your existing ceiling mount or install the projector farther from the screen, saving construction work. Digital Image Shift allows the image to move up to 10% in any direction for off-axis or high-ceiling installations.

Note: Resolution decreases when using Digital Zoom Extender and Digital Image Shift. When using Digital Zoom Extender, the image reduction rate can be adjusted up to 80%. If set below 100%, the image position can be shifted vertically or horizontally using Digital Image Shift. Some screen correction functions are unavailable when using this function, and the range of corner adjustment is limited. Using the same projector mount may not be possible in every situation.

Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in gyro sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD menu. Installers can adjust the projection angle without needing assistance.

Note: The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.

The VMZ7ST Series introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.

Grid function enables correction of minor distortion by adjusting horizontal or vertical lines on a fixed 11 x 17 grid. Correction is easily performed via remote control.

Note: Remote control pictured is for illustrative purposes only.

Curved Correction now allows each side of the image to be adjusted independently—unlike previous models, where opposite sides moved in tandem. This added flexibility supports more accurate correction on curved surfaces, ideal for sports simulators, museum exhibits, and corporate displays.

For corner-based or column projections, the 6-Point Screen Adjustment system enables fine-tuned control over image geometry. It’s ideal for maximizing screen use in compact meeting spaces or creating striking visual installations in galleries and showrooms.

4K DIGITAL LINK is a connection based on HDBaseT™ that supports long-distance video, audio, and
control-signal transmission via a single CAT 5e LAN cable, reducing installation complexity in large venues with a remote server room.

Note: 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YP_BP_R 4:2:0 format only for 4K/30p input via DIGITAL LINK.

The VMZ7ST Series accepts 4K¹ video signals via DIGITAL LINK and HDMI™ terminals, simplifying projector integration into your existing infrastructure. This capability enables 4K¹ signal transmission to display endpoints with varying screen resolutions, eliminating the need for external converters or content re-encoding.

1 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YP_BP_R 4:2:0 format only for 4K/30p signals input via DIGITAL LINK.

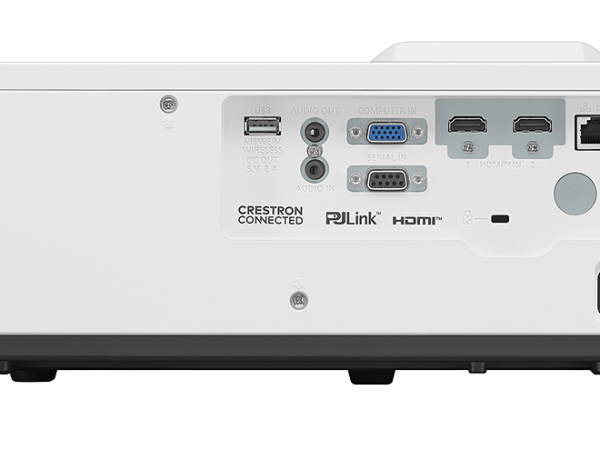

Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink™ (Class 2), Crestron Connected^® V2, Crestron^® XiO Cloud, and Extron XTP^®. The projector also includes an emulation function to ensure compatibility with legacy management software.

Note: The optional AJ-WM50 Series Wireless Module does not support IPv6.

Adjusting each projector in your fleet can be time-consuming. To expedite this task, the VMZ7ST Series features a data cloning function that allows main projector settings, including saved adjustment data, to be copied to sub-projectors via LAN or USB flash memory device.

Note: Supported on identical models only. Excludes passwords, projector name/ID, time, date, time zone, and network settings. Data can be copied to a maximum of 99 sub-projectors via LAN.

Share content wirelessly¹ from your laptop or smartphone. Just scan the QR code shown in the on-screen display menu using your smartphone’s camera, and your device will connect to the projector automatically over wireless LAN, with no SSID or passwords required. Use free Panasonic wireless apps² to beam your media to the big screen.

1 Requires the optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.

2 Free software is available for Windows^® PC here. Wireless Projector app is available from the App Store or the Google Play store. Please check the compatibility of your device before installation.

Share your device screen wirelessly and switch presenters freely. PressIT, Panasonic’s optional Wireless Presentation System, supports screen-sharing at the press of a button. PressIT comprises transmitters connected to your devices¹ and a receiver connected to the projector. For neat installation, power is supplied via the projector’s DC 5 V/2 A USB port. Learn more about PressIT here or visit our Wireless Solutions webpage.

Note: Wireless Presentation System PressIT is sold separately. Availability may vary by country or region.

1 USB Type-C terminal of the video output device requires support for DisplayPort™ ALT Mode (video output function) and power supply function (5 V/0.9 A). PressIT app (available free from the App Store or the Google Play store) is required when using Android™ or iOS/iPadOS devices. For more details, please refer to the operating manual.

Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:1¹ contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.

1 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with
ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

Daylight View Basic uses a sensor to measure ambient light levels in your space and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.

WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.

The VMZ7ST Series introduces a new Vivid Green Mode that enhances green tones for brighter, more natural-looking images—ideal for golf and other sports simulations. By adjusting signal gain and optimizing color balance, this mode delivers deeper greens and brighter midtones for a more vivid and engaging viewing experience.

The projector’s heat-resistant light source reduces operating noise, enhancing the clarity of conversations during in-person or hybrid lessons and meetings. In Quiet 2 Mode, operating noise is as low as 25 dB¹—about as soft as the sound of rustling leaves.

1 For the PT-VMZ6ST. Please see the product specifications for noise values of other models.

The VMZ7ST Series is designed with sustainability in mind. The plastic used in the projector’s main body contains approximately 56%¹ recycled resin to reduce reliance on virgin plastics. Recyclable cardboard insulation replaces foam in the shipping carton, and unnecessary packaging has been eliminated to cut waste. These efforts support eco-conscious manufacturing and help your organization reduce its footprint throughout the projector’s lifecycle.

1 By total weight of plastic parts in the projector main unit. Excludes projection lenses, printed circuit boards, labels, cables, connectors, electronic components, optical components, ESD components, EMI component adhesives, and coatings.

The VMZ7ST Series features an Auto Power On function that automatically turns the projector on from standby and begins projection when an input signal is detected. This allows presenters to turn off the projector between sessions without worrying about delays, streamlining daily use and reducing unnecessary energy consumption.

Note: Settings cannot be made when [STANDBY MODE] is set to [ECO] or when [IN STANDBY MODE] is set to [ON] in the [AUDIO SETTINGS] menu. Auto Power On is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

A new Image Detection function helps reduce power consumption during inactivity. If no change is detected in the projected image for a set time, the projector can automatically dim the light output by 50% or turn off the light source. The timer is adjustable, and brightness returns seamlessly when activity resumes¹, reducing energy waste without interrupting the experience.

1 If the projector enters standby while in Image Detection power-saving mode, resumption time may vary depending on standby settings and input source.

Note: Settings cannot be made when [DYNAMIC CONTRAST] is set to anything other than [OFF], [ECO MANAGEMENT] → [AUTO POWER SAVE] is set to [OFF], [ECO MANAGEMENT] → [LIGHT POWER] is set to anything other than [NORMAL], a [TEST PATTERN] is displayed, or there is no signal. Image Detection function is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

The VMZ7ST Series includes a Quick Startup mode. When enabled, the projector displays your content at full brightness in about one second¹ when started from standby—no fade-in delay as with lamp-based models. This helps you resume presentations quickly, minimizing distractions. Additionally, Direct Power Off² lets you shut down the projector using the room breaker or by unplugging the power cord—no cooldown required.

1 When [ECO MANAGEMENT] > [QUICK STARTUP] is set to [ON]. [QUICK STARTUP] is unavailable after the [AVAILABLE PERIOD] setting has expired. When [QUICK STARTUP] is set to [ON], the projector continues to warm up, increasing power consumption. When [QUICK STARTUP] is set to [ON], the standby period when the [QUICK STARTUP] function is valid will be added as the projector runtime. [QUICK STARTUP] cannot be set when [STANDBY MODE] is set to [ECO]. Time varies depending on connection terminals, signals, and other conditions.

2 Settings made just before power is disconnected may not be retained on the next startup.

Both HDMI™ inputs support Consumer Electronics Control (CEC) command-compatible signals from compatible devices. This feature allows limited projector control via the source device, streamlining operation.

Note: The link control may not operate normally depending on the connected CEC command-compatible device.

The VMZ7ST Series introduces a new scheduling feature accessed via the OSD settings menu. You can program the projector to perform automated actions, including power on/off, shutter activation, and input selection, at specific times throughout the week. This functionality streamlines operations, reduces manual labor, and optimizes resource management.

The VMZ7ST Series is compatible with Multi Monitoring & Control Software, enabling management of up to 2,048 display devices from a remote PC over LAN. The software facilitates status monitoring, device control, playlist delivery, playback scheduling, and system-map visualization. For more information, please visit our software information webpage.
