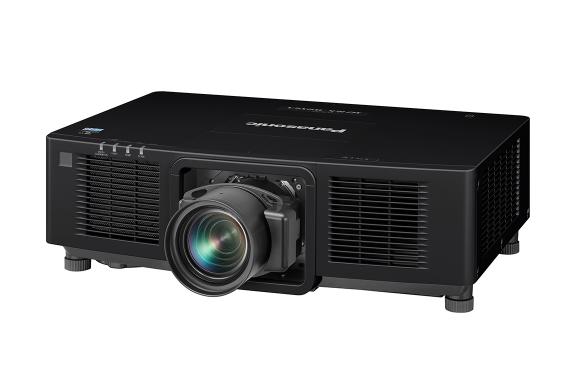

PANASONIC PT-MZ13K White (Laser / 13,000 lm / WUXGA)

New 1-inch LCD panels, Multi-Laser Drive Engine, inorganic phosphor wheel, and Pure White Generator combine to achieve brighter and more natural color expression. Pure White Generator reduces energy wastage from the light source using a Panasonic-original multi-reflection engine that collects blue laser light with very high efficiency. Pure White Generator harnesses the extra light to improve color accuracy and create vibrant, natural, true-to-life colors that appear brighter and deeper on screen. Regardless of the installation site and ambient light levels, audiences can enjoy immersive high-quality images comfortably viewed for extended periods.

Reliable Operation Reduces Callouts in Real-World Conditions

The PT-MZ13K is our first LCD projector lineup to feature a liquid-cooling system for multiple solid-state laser modules, securing reliable projection stability. As well as raising the ceiling for high-brightness projection in elevated locations and in environments subject to heat, the liquid-cooling system contributes to whisper-quiet 32–38 dB operation (depending on the projection mode)* to minimize distracting noise within the learning space.

Panasonic’s Original Phosphor-Wheel Cooling System

The PT-MZ16K Series features a dedicated and original sealed cooling system for the phosphor wheel, which is made of durable, heat-resistant inorganic material. Extensive shielding around the phosphor-wheel assembly protects against dust-particle intrusion for extended reliability and consistent brightness.

Multi-Drive Laser Optical Engine groups laser diodes into multiple laser modules. If one diode in a module fails, only a limited number of diodes in the affected series are bypassed. The remaining diodes continue to operate, maintaining close to full brightness. If a laser diode fails in other projectors, the entire module shuts down, resulting in a dramatic loss of brightness. The PT-MZ16K Series adds an invaluable layer of insurance when image presentation must not be interrupted.

This LCD projector series boasts a flexible backup input-switching function configurable to receive the same input signal via a combination of assigned primary and secondary inputs. If signal transmission to the primary input fails, projection continues via the assigned backup input without screen blanking. When communication is restored, the projector switches back to primary input automatically. This feature is invaluable when projection must be maintained without interruption.

New Information Monitor

To further simplify setup and operation of the PT-MZ16K Series, an Information Monitor is located on the rear panel adjacent to terminals and physical controls. The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.

These are Panasonic’s first LCD projectors to support free Geometry Manager Pro software traditionally available with our large-venue DLP™ projectors. The software expands built-in geometric and multi-screen adjustment capabilities with a Free Grid function that governs 4-corner adjustment, keystone correction, curved-screen correction, and free-form image correction via PC interface. Two upgrade kits can be unlocked with paid license keys to further deepen functionality. ET-UK20 adds uniformity correction and an extensive creative masking package, while ET-CUK10 features Auto Screen Adjustment for simultaneous setup of multiple screens (including curved-screen correction) using a compatible camera. These kits expedite edge-blending and color-matching images over multiple screens with automatic calibration for black level, brightness uniformity, and stacking.

Geometric Adjustment with Free Grid Correction via Remote Control

Panasonic has added a new Free Grid function to existing Geometric Adjustment that enables convenient grid-based image adjustment using the projector’s remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to compensate for screen distortions. This correction is easily performed by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to smoothly create a distortion-free projection in a wide range of installation situations.

Smart Projector Control app for Android™ and iOS now includes Near Field Communication (NFC) function to instantly pair smartphone to projector just by touching them together. Once linked, the app accesses an information settings menu that’s readable and writable^*2 for easy adjustment without turning on the projector. As well as showing data and allowing certain settings to be changed, the app features an auto-focus function that uses the smartphone’s camera and app UI to achieve fast yet precise image focus.

With intended deployment in secondary and tertiary schools, seminar rooms, conference centers, and other training spaces, the PT-MZ16K Series is engineered for quiet operation at as low as 32 dB* in a quiet mode.

* For the PT-MZ16KL, 38 dB in NORMAL Mode.

Precision laser power output modulation achieves high contrast with low power consumption, enabling superior expression of light and dark scenes for a natural, comfortable viewing experience. The PT-MZ16K Series features high 3,000,000:1* dynamic contrast.

Detail Clarity Processor 4 Provides Pin-Sharp Insight

Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms pull information from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for a vastly superior picture.

Color Adjustment makes it easy to correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.

Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.

Quick Start and Quick Off

The laser light source doesn’t require any time to warm up, so images appear almost instantly on projectors with Quick Start/Quick Off function. There’s also no cool-down needed when turning the power off. It’s safe to switch the projector on and off any time desired.

Another benefit of digital laser output power modulation technology is a handy Fade In/Fade Out function, which allows users to commence or conclude their presentation to professional effect.
